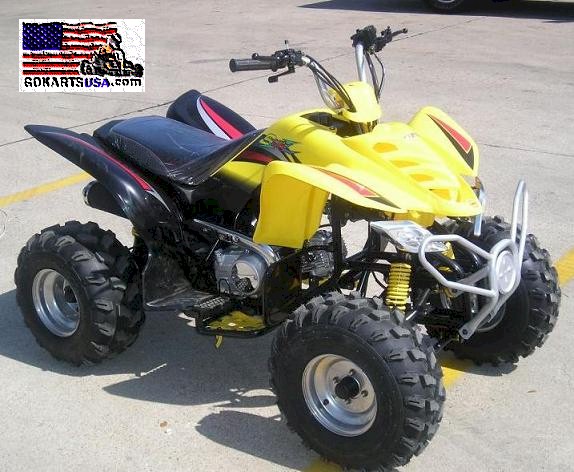

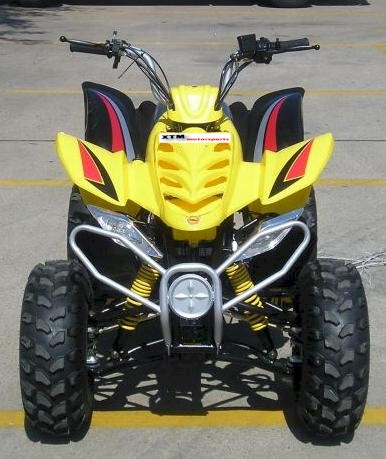

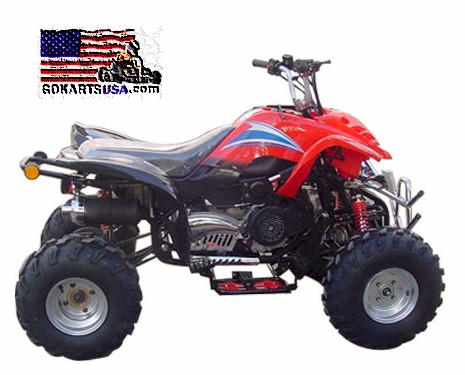

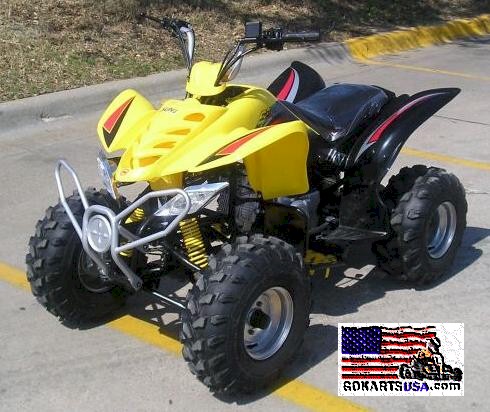

150MX Sport ATV

As young riders grow taller and stronger, 150MX is ready to provide them with the fun and performance they want, and the safety features parents appreciate.

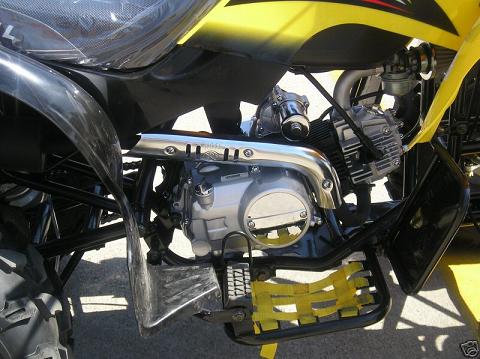

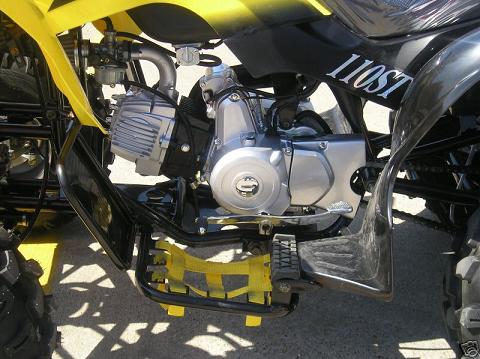

The 150MX ATV is designed for riders ages 12 and older, and is powered by an 150cc four-stroke engine that features forced-air cooling to maintain optimum operating temperatures.

Other features include electric start and a sealed battery, dependable CDI ignition, and snorkel air intake that permits added air intake to the  the engine. An added safety feature is the electric start interlock that requires the parking brake to be applied in order to start the engine.

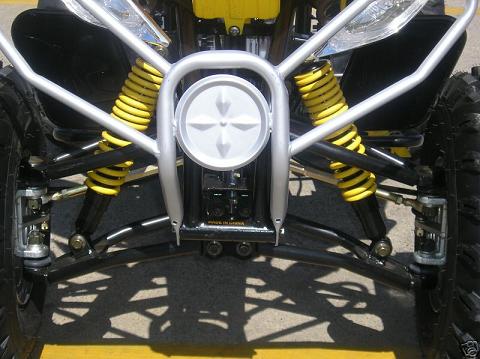

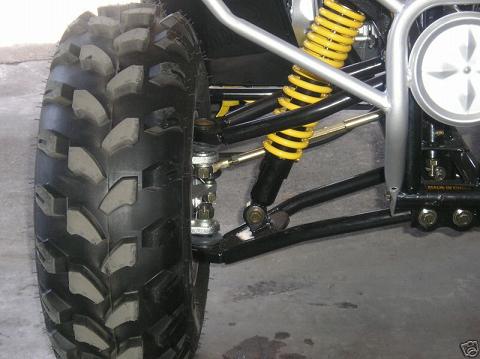

The chassis of the 150MX is made of sturdy steel tubing and rides on a single A-arm front suspension with dual shocks and a rear swingarm with a single shock. Stopping power is provided by durable front and rear drum brakes.

The 150MX has a 1.6-gallon fuel tank for extended riding, and a keyed ignition system helps prevent unauthorized use.

ATV riders are encouraged to ride responsibly and to complete an ATV rider safety course such as conducted by the ATV Safety Institute (ASI).

SPECIFICATIONS
Engine: Honda designed Air-cooled 4-stroke, single cylinder
Displacement: 150cc
Bore x stroke: 50.0 x 42.0mm
Compression ratio: 7.0:1
Ignition: CDI w/lights
Starting system: Electric
Transmission: fully automatic with reverse
Final drive: Chain
Overall length: 61 in.
Overall width: 38 in.
Overall height: 41 in.
Seat height: 25.4 in.
Ground clearance: 4.3 in.
Wheelbase: 42 in.

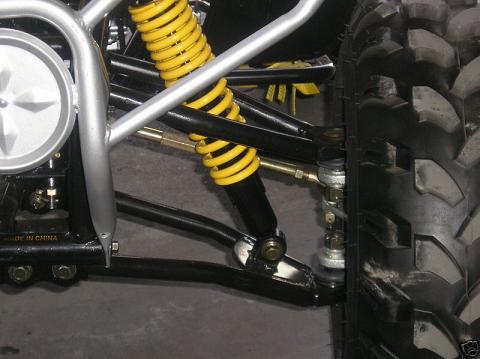

Front suspension: Independent single A-arms with dual shocks

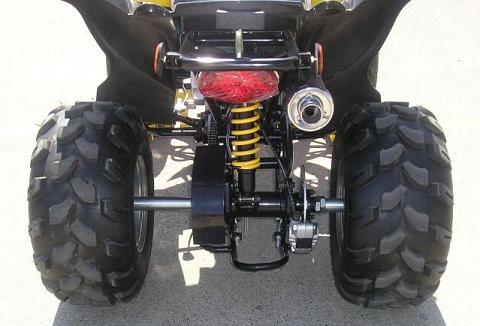

Rear suspension: Swingarm with single shock
Brakes: Front Drum / Rear Disc
Front tires: AT19x7-8
Rear tires: AT18x9.5
Fuel capacity: 1.6 gal.
Dry weight: 242 lbs.
