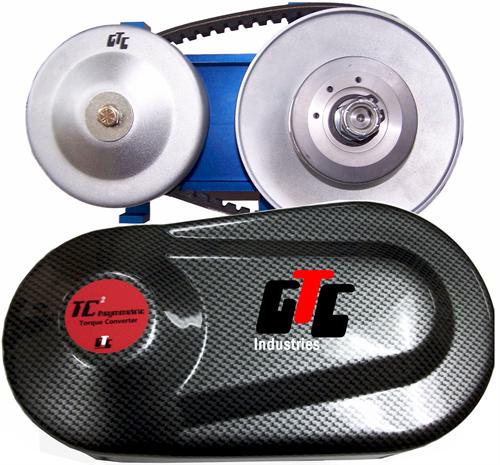

GTC TC2 1002 Torque Converter
|
Reg: $199.00
MEMORIAL DAY SALE: $189.00
IN STOCK
MFG: GTC Industries
Part No: 1002 / 218353A
IN STOCK, READY TO SHIP
PRODUCT OPTIONS
* denotes required field
Cover*
Belt Guard*
Extra Belt*
Quantity Discounts
| Quantity | Amount |
| 2 to 3 | $179.00 |
| 4 to 6 | $169.00 |
| 7 to 9 | $164.00 |
| 10 to 9999 | $159.00 |
|
|
|
TC2
1002 TORQUE CONVERTER
3/4" Bore, #40/41 Chain, 10 Tooth Sprocket, 2-7hp Engines
Replaces Comet* TAV2* 218353A
*Note: COMET and TAV2 are trademarks of Certified Parts Corporation. GTC Industries is not affiliated or associated with Certified Parts or its products in any way
|
GTC Torque Converters are Fully Compatible with Comet*. All Parts Interchangable. Precision Made High Quality means Top Performance and Durability from GTC
Torque Converters dramatically improve Take Off Power, Acceleration, Climbing Ability and Top End Speed on Gokarts, Minibikes and other Small Vehicles. Vehicles currently using a Centrifugal Clutch can easily upgrade to a TC2 Torque Converter
Bench Test Video
QUALITY ASSURANCE TESTING:
GokartsUSA's initial testing of the GTC Torque Converter proved highly successful. The TC2 was road tested on a Little Bad Ass Minichopper with a 5hp Tecumseh Engine. The TC2 model 1002 was used which has a 3/4" Bore and #40/41P Chain. The performance impressed our technicians. The low end power and torque was strong enough to raise the front wheel with just barely applying the throttle. Take off and acceleration was also remarkably impressive. Taking on a steep hill from a complete stop, the TC2 smoothly down shifted and pulled the 200 pound rider up the hill with ease. On level ground, at maximum throttle, the TC2 shifted into a very high overdrive ratio and gave us an impressive top speed of 52mph from this stock 5hp Tecumseh. All in all, the TC2 performed significantly better than the stock TAV2 the bike originally came with
|
NOTES:
TC2 1002 Replaces Comet* 218353A TAV2* 30-75 Torq-A-Verter
INCLUDED:
The TC2 Torque Converter is a complete kit that includes both drive and driven clutches, belt, billet aluminum engine mounting plate with a built in jackshaft and sprocket, all hardware and installation instructions
Add the Shroud in Product Options above
Plastic Shroud Cover with Decal for all GTC Torque Converters.
Fits all models of TC2 and Comet* 30 Series TAV2 Torq-A-Verters
MODELS:
Four TC2 Kit Models Available
-
1001 3/4" Bore, #35 Chain
-
1002 3/4" Bore, #40/41 Chain
-
1003 1" Bore, #35 Chain
-
1004 1" Bore, #40/41 Chain
ENGINES:
TC2 Bolts onto most engines with a horizontal shaft including:
-
Briggs
-
Robin
- Tecumseh
- Honda (and clones)
- Kohler
- Clinton
- Lifan
|
High Performance
|
The TC2 is a High Performance asymmetrical torque converter system in which the sheave faces have different angles. The system operates with the torque sensing cam in an outboard position allowing for in-line operation of the unit. The primary benefit of this design is that it allows proper alignment of the final drive chain to be on the same side of the vehicle as the torque converter. Moreover, the angle on the movable sheave being set at 18 degrees enables the unit to raise the belt to a larger pitch diameter with less travel of the sheave. This allows the unit to achieve higher overdrive ratios at maximum RPM
|
|
· In-Line Operation
· Powerful Low Ratio
· Smooth Shifting on Load Demand
· Infinite High / Low Ratios
· High Performance Overdrive
|
OPERATION OF THE TC2
|
The TC2 provides Neutral engagement at Engine Idle. At 2200 RPM, the system engages for a Powerful Low Ratio for great takeoff speed. At Mid Range, the TC2 instantaneously shifts ratios based upon RPM and Load Requirements. Finally, the High Performance Overdrive engages for maximum speed
|
|
|
|
|
|
|
|
TC2 Drive and Driven Units
Parts
|
PART#
|
DESCRIPTION
|
|
|
COMET#
|
|
1001
|
TC2 Torque Converter 3/4" Bore, #35P, 12T
|
|
218352A
|
|
1002
|
TC2 Torque Converter 3/4" Bore, #40/41P, 10T
|
218353A
|
|
1003
|
TC2 Torque Converter 1" Bore, #35P, 12T
|
|
218354A
|
|
1004
|
TC2 Torque Converter 1" Bore, #40/41P, 10T
|
|
218355A
|
|
1005
|
DRIVER UNIT 3/4"
|
|
|
203814A
|
|
1006
|
DRIVER UNIT 1"
|
|
|
203603A
|
|
1007
|
DRIVEN UNIT 5/8" BORE
|
|
|
217610A
|
|
1008
|
DRIVER MOUNTING BOLT 3/4" CRANKSHAFT
|
205384A
|
|
1009
|
DRIVER MOUNTING BOLT 1" CRANKSHAFT
|
215732A
|
|
1010
|
LOCK WASHER, 5/16
|
|
|
200701A
|
|
1011
|
PILOT WASHER 3/8
|
|
|
200840A
|
|
1012
|
PILOT WASHER 5/16
|
|
|
202429A
|
|
1013
|
DRUM DRIVER 3/4"
|
|
|
202090A
|
|
1014
|
DRUM DRIVER 1"
|
|
|
202427A
|
|
1015
|
HUB DRIVER 3/4" 4 SPLINED
|
|
203376A
|
|
1016
|
HUB DRIVER 1" 8 SPLINED
|
|
|
203641A
|
|
1017
|
DRIVER WEIGHT ASSY W/SPRINGS
|
|
200344A
|
|
1018
|
BLUE GARTER SPRING SET OF 2
|
|
011188A
|
|
1019
|
SHEAVE MOVABLE HALF W/HUB 3/4" BORE
|
200410A
|
|
1020
|
SHEAVE MOVABLE HALF W/HUB 1" BORE
|
|
203515A
|
|
1021
|
BUSHING BRONZE (NOT USED ON 1")
|
|
200349A
|
|
1023
|
BELT, ASYMMETRIC
|
|
|
203589A
|
|
1024
|
SHEAVE STATIONARY 3/4" BORE
|
|
202066A
|
|
1025
|
SHEAVE STATIONARY 1" BORE
|
|
206633A
|
|
1026
|
SPACER STEEL 3/4"
|
|
|
200389A
|
|
1027
|
SPACER STEEL 1"
|
|
|
202877A
|
|
1028
|
JAM NUT
|
|
|
|
203189A
|
|
1029
|
SNAP RING
|
|
|
|
204714A
|
|
1030
|
FIXED CAM
|
|
|
|
215650A
|
|
1031
|
SPRING GREEN
|
|
|
215699A
|
|
1032
|
FACE MOVEABLE WITH CAM
|
|
215647A
|
|
1033
|
BUTTON INSERT
|
|
|
204332A
|
|
1034
|
BUSHING
|
|
|
|
203942A
|
|
1035
|
FACE FIXED WITH POST 5/8" BORE
|
|
217612A
|
|
1036
|
KEY 3/16" SQ x 2-1/4"
|
|
|
209831A
|
|
1037
|
KEY 3/16" SQ x 9/16"
|
|
|
011059A
|
|
1038
|
JACKSHAFT, 5/8" DIAMETER
|
|
212225A
|
|
1039
|
WASHER 5/8"
|
|
|
200834A
|
|
1040
|
SPROCKET 12T 35P
|
|
|
200379A
|
|
1041
|
SPROCKET 10T 40/41P
|
|
|
102168A
|
|
1042
|
BALL BEARING SEALED 5/8"
|
|
215558A
|
|
1043
|
SPACER 5/8"
|
|
|
|
203187A
|
|
1044
|
SNAP RING FOR 5/8" SHAFT
|
|
212227A
|
|
1045
|
MOUNTING BRACKET W/BEARINGS AND SPACER
|
218525A
|
|
1046
|
ENGINE MOUNTING BOLT
|
|
|
217867A
|
|
1047
|
LOCK WASHER 5/16"
|
|
|
200701A
|
|
1048
|
SHROUD PLASTIC W/DECALS
|
|
218351A
|
|
1049
|
SCREW, SHROUND MOUNTING
|
|
214146A
|
|
1050
|
ROUND DECAL
|
|
|
218513A
|
|
1051
|
LONG DECAL
|
|
|
218514A
|
|
WARNING: Serious injury or death can result from improper installation or operation of this product. Children under the age of 16 should not operate vehicles with this product installed. Do not operate the TC2 without a cover, chain and belt guard device designed specifically for your vehicle (not supplied). Long hair or loose clothing can become entangled with moving parts and cause serious injury or death. Engines and moving parts can become hot and cause burns. By ordering this product, the purchaser accepts all risks associated with installation and operation of this product |
|
|
|
Reg: $23.00
MEMORIAL DAY SALE: $19.00
|
|
|

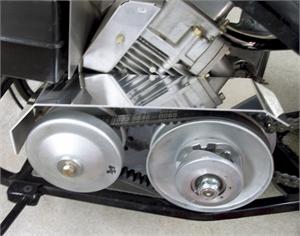

Belt Guard for TC2 Torque Converters
|
|
|
|
|
|
Reg: $34.95
MEMORIAL DAY SALE: $27.88
|
|
|
#8: Belt, Asymmetric
|
|
|
|
|
|
Reg: $199.00
MEMORIAL DAY SALE: $189.00
|
|
|
1001 TC2. 3/4" Bore, 12 Teeth, #35 chain, 2-7 HP Engines. Replacement for Comet* 218352A TAV2* 30 for Go Kart or Mini Bike. GUARANTEED IN STOCK
|
|
|
|
|
|
Reg: $199.00
MEMORIAL DAY SALE: $189.00
|
|
|
1002 TC2. 3/4" Bore, 10 Teeth, #40/41 chain, Bolts onto 2-7 HP Engines. Replaces Comet* 218353A TAV2* 30 Torque Converter for Go Kart or Mini Bike. GUARANTEED IN STOCK
|
|
|
|
|
|
Reg: $239.00
MEMORIAL DAY SALE: $224.00
|
|
|
1003 TC2. 1" Bore, 12 Teeth, #35 chain, Replaces Comet* 218354A TAV2* 30 Torque Converter for Go Kart or Mini Bike. GUARANTEED IN STOCK
|
|
|
|
|
|
Reg: $239.00
MEMORIAL DAY SALE: $224.00
|
|
|
GTC 1004 TC2. 1" Bore, 10 Teeth, #40/41 chain, replacement for Comet* 218355A TAV2* 30 Torque Converter for Go Kart or Mini Bike. GUARANTEED IN STOCK
|
|
|
|
|
|
Reg: $199.00
MEMORIAL DAY SALE: $189.00
|
|
|
Convert your Baja Heat MB200 / Warrior Minibike from a Jackshaft to a Torque Converter. The 1002 TC2 3/4" Bore, 10 Teeth, #40/41 chain, Easy to install, Bolts onto your 196cc Engine and gives you a big boost in power! IN STOCK
|
|
|
|
|
|
Reg: $199.00
MEMORIAL DAY SALE: $189.00
|
|
|
Wakeboard Winch Torque Converter. Select a 3/4 or 1 Inch Bore Model. Replaces Comet* TAV2* 30 Torq-A-Verter for Tecumseh, Briggs or Subaru Engines. IN STOCK READY TO SHIP
|
|
|
Product Reviews
| (5 Ratings, 5 Reviews) |
Average Rating:
|
TAV2 copy quality is lacking
Deanna Vezina
(Macomb Township, MI)
5/2/2012 4:28 PM
After 5hrs of use the snap ring peeled off and bearing came out. Installed new bearings and welded 5/8 shaft instead of having snap ring. We'll see how long this lasts.
RESPONSE: Deanna, make sure to install the pilot washer in front of the snap ring on the jackshaft. Then, make sure you torque the jamnut to no more than 11 pounds, Any more and the snap ring will pop off during operation. Thanks, the Gokarts USA Team
|
Great investment
Joe
(Duffield, VA)
12/29/2011 7:42 AM
Ordered this system for a baja mini bike. Installation was very simple. Had to bend the jack shaft tab down and adjust the rear tire all the way forward and that was it. Bike now accelerates crazy fast and climbs hills with ease here in the mountains. My son weighs 220 lbs and it now runs with my reaction 250 buggy in a drag race. What a blast!!
|
We ordered this from 3 other places
Elizabeth
(San Leandro, CA)
9/11/2011 7:48 PM
After placing 3 separate orders with other stores and having them all cancelled, we finally got it here. All 3 websites showed the comet TAV in stock but none of them had them. We got the GTC and it installed on our gokart which hadnt been driven in 3 years. It runs great. Highly recommended
|
Fantastic, Incredible, We Love it!
Ken
(GA)
7/20/2010 7:46 AM
I Installed TC2s on 2 Baja Heat Mini Bikes with 196cc Honda Clones. They performed Fantastic, incredible, I love it! If you put you feet on the ground and hit the gas, it will stand up! The acceleration is Crazy fast, almost instantaneous. The Top End Speed is around 38-40 mph, which is crazy for a mini bike!
The Install Instructions were very good and easy to follow. I think the jack shaft axle should have a threaded bolt retainer instead of an e-clip. The drive pulley is hard to hold while being torqued, and you should include threadlocker.
|
TC2 Runs Great
Mike
(Arizona)
7/16/2010 6:16 PM
Well, I got my TC2 after waiting about 2 weeks. At the time I ordered it, it was on backorder. They tell me now it is in stock and ships out in 1 day. I got the 3/4 inch model and installed it on my bike with a Honda 5.5 (clone) engine. The take off power is great, it pops a wheelie off the line. It accelerates nicely and gives me great top end speed. It came with good install directions and I was able to install it in less than an hour. I know there are a lot of people out there looking for a torque converter so i thought I would post my comments here. All in all, I am very happy with the TC2 and very glad that they are available.
|
|
