MINIBIKE KIT

MADE-IN-USA

10" Wheels, 17.5" Tires

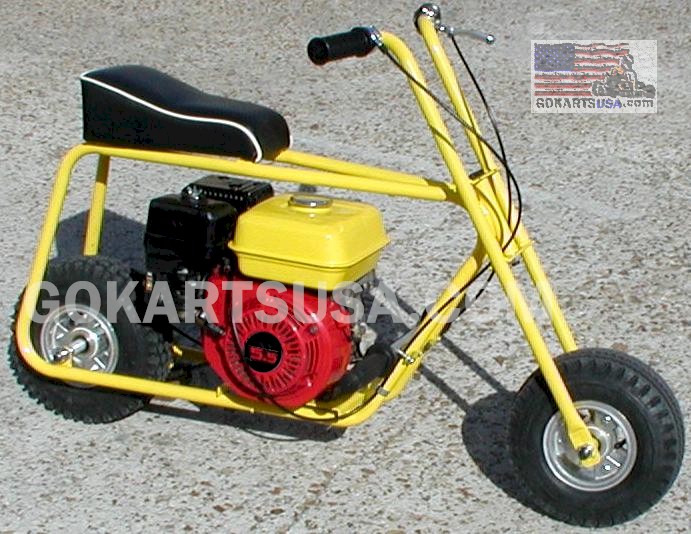

The photo above shows the kit with the 5 inch wheels, however,

This 3544 kit comes with the 10 inch wheels and 17.5 inch tires shown below:

See the VIDEO at the bottom of this page

This is on of the original Mini Bikes made since 1960

Remember the Old School Minibikes of the 60s? Like Taco and Rupp?

Those of you who grew up in the 60’s

Remember Minibikes as a wonderful part of childhood.

Boy's who were fortunate enough to own one couldn’t wait to get out of school and go down to the local field to ride

Painting and Assembly Required

One of the only Old School Mini Bikes still manufactured today!

COMPONENTS INCLUDED IN THIS KIT:

Frame and Fork
Wheel and Tire Assemblies
72 Tooth Sprocket
Drum Brake Assembly
Padded Seat
Foot Pegs
Chain and Master Link
Throttle Assembly with Cable
Front and Rear Axles
Brake Cable
Brake Lever
All Hardware & Fasteners

SPECS:

Will accept a 2 to 6hp Engine
4 1/2" Internal Expanding Brake
10" Steel Wheels
Front Tire: 350x10 17.5" Motorcycle Style
Rear Tire: 350x10 17.5" Motorcycle Style
#35 chain with master link
Low cost, High Quality, MADE-IN-USA
Rugged Construction

Ready to paint and assemble with basic hand tools

CLUTCH

You will need to select a Clutch for your Mini Bike in Product Options above. The 12 tooth clutch will give you a faster take off and lower gearing for climbing hills. The 13 tooth clutch will give you more top end speed

ENGINE

The Mini Bike Kit does not include an Engine unless you add one. After adding this Mini Bike Kit to your cart, you must scroll down to add an engine. (engine sold separately)

All of the engines shown below fit this frame and have a throttle cable adapter setup for minibikes. Not just any engine will work on a Mini Bike

CHAIN GUARD

Add a Chain Guard, Strongly Advised, in Product Options above

KICKSTAND

Add a Kickstand with weldable Mounting Bracket in Product Options above

See a Video of this Mini Bike

FUN TO BUILD

Has everything you need. Easy-to-follow Instructions included.

No Welding, just basic tools. it's Fun!

This is an excellent project for you or your family. Not only does it help teach mechanical basics, but you can also have the fun of riding it after you have said

"I built it myself!"

The kit includes everything you need except an engine and clutch. Add a Clutch and other add-ons in Product Options above. Then scroll down to add an engine if you need one.

No welding is required! Everything simply bolts together. The Frame & Forks come completely welded and are not painted, are made from thick-wall mild steel tubing.

The engines shown below fit this frame and have throttle cable adapter setup for minibikes.

ENGINE INFO: Not just any engine can be used on a Go Kart or Minibike. The engines shown below are factory designed to be used on Go Karts or Minibikes

Lawn Mower and Utility Engines from other suppliers may cause you to have unwanted problems such as these:

They may not have the proper spring-loaded throttle return for the throttle cable
The crankshaft may be the wrong length and a standard clutch will not fit
The side cover may not have a standard bolt pattern for adding chain guards, Torq-a-Verter kits, etc.
It may also be completely under-powered because of the RPM range of the engine

Select an Engine shown below
