GokartsUSA carries over 240 Models of Gokarts, Dune Buggies, Mini Bikes, ATVs, Mini Choppers, Parts and Accessories from all the Top Manufacturers. Free Shipping on most orders (except parts and some bikes)

Please browse through our Online Catalog


can accomodate drum brake and sprocket

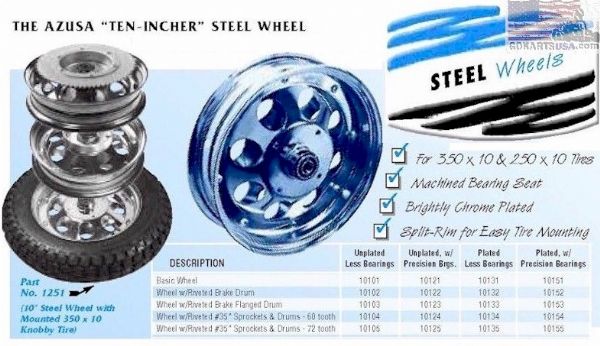

10" Steel Wheel for minibikes


10" Steel Wheel for Minibikes and Minichoppers
Configure your Wheel in Product Options above. Click Add-to-Cart.
Use the spec sheet below to determine Part Number.

Click here to view or print Spec Sheet to assist you in ordering.

Front Wheel Select one of the Basic Wheels and choose your desired bearings.

Rear Wheel can be configured with a Sprocket and 4-1/2" Drum Brake as follows:

  • 4-1/2" Brake Drum,
  • 4-1/2" Drum Brake Assembly
  • Sprocket with Brake Drum
  • Precision Bearings
  • Plated finish
  • 17.5" Motorcycle Tire
  • Tube

TIPS: For use as a front wheel, simply select one of the Basic Wheels, add a Tire and Tube and click add-to-cart.

A typical configuration for use as a rear wheel would be to add a 60 tooth sprocket and 4-1/2" Drum Brake. To do this, select wheel #10154 above (this will include the brake drum and sprocket), add the 2270S Brake assembly, add a Tire and Tube and click add-to-cart.

10" WHEEL DESCRIPTION

Unplated
w/o Bearings
Unplated w/
Precision
Bearings
Plated w/o
Bearings
Plated w/
Precision
Bearings
Basic Wheel
10101
10121
10131
10151
Wheel w/Riveted Brake Drum
10102
10122
10132
10152
Wheel w/Riveted Brake Flanged Drum
10103
10123
10133
10153
Wheel w/Riveted #35 Sprocket & Drum - 60 tooth
10104
10124
10134
10154
Wheel w/Riveted #35 Sprocket & Drum - 72 tooth
10105
10125
10135
10155

Universal Tread Tires
Small Motrorcycle tires for our 10" Steel Rims

TIRE SIZE

PART NO.

PLY

WIDTH (in.)

O.D. (in.)

INNER
TUBE
250/275 x 10 7020 4 2.5 15.3 7126
410/350 x 10 7013 4 3.7 17.5 7137


Buy Product Online | Visit Store Home

Manufactured by Azusa
