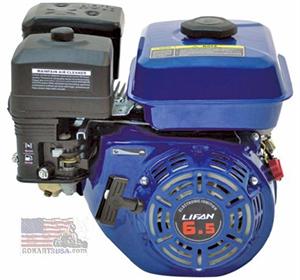

Lifan 6.5hp OHV Engine
|
IN STOCK
Manufacturer: Lifan
Part No: JF200
|
|
LIFAN Honda Clone 6.5hp
Based upon the Honda design, this reliable engine has the Cast Iron Sleeve for long life. This is a low cost alternative to the Honda GX200 engine which costs over $745
FEATURES:
-
The engine fits in the minibike and gokarts we sell. Also, gas tank may be removed for installation in a custom minibike frame if you are using a separate gas tank.
-
This engine bolts right onto most go karts and mini bikes without any modifications. *3/4" diameter, 2-7/16" long keyed crankshaft. 14-3/4 Height.
-
Centrifugal Clutches and Torque Converters for 3/4" diameter crankshafts will fit this engine.
-
4 Tapped bolt holes around crankshaft. Our Torq-A-Verter kits will bolt up to this engine. Chain guards, etc...will also bolt to it.
-
Soft pull starter - less pulling effort required to start.
-
Set up with a throttle hookup and small return spring.
NOTE: This engine has a manual choke. The manual choke allows the engine to be started more easily under most conditions
|
|
Lawn Mower and Utility Engines from other suppliers may cause you to have unwanted problems such as these:
|
-
They may not have the proper throttle hookup for the throttle cable
-
The crankshaft may be the wrong length and a standard clutch will not fit
-
The side cover may not have a standard bolt pattern for adding chain guards, Torq-a-Verter kits, etc.
-
It may also be completely under-powered because of the RPM range of the engine
|
| Model
|
|
JF200
|
|
|
| Engine type
|
|
4-stroke 25° inclined single cylinder
|
|
| Bore×Stroke
|
|
68mm × 45mm Cast Iron Sleeve
|
|
|
| Displacement
|
|
196cc
|
|
|
| Compression ratio
|
|
8.5/1
|
|
|
| Horsepower
|
|
6.5HP/3600rpm
|
|
|
| Max. Torque
|
|
13Nm/2500rpm
|
|
|
| lgnition
|
|
Non-contact transistorized ignition(TCI)
|
|
| Starter
|
|
Recoil hand-operated
|
|
|
| Air cleaner
|
|
Semi-dry, oil bath, dual, double silent cyclone
|
|
| Fuel tank capacity
|
|
3.6 L
|
|
|
| Fuel consumption
|
|
290g/HP-hour
|
|
|
| Engine oil capacity
|
0.6 L
|
|
|
| Dimensions
|
L:12-3/4", W:11.0", H:14-3/4"
Crankshaft: 3/4" x 2-7/16"
|
|
|
| Dry weight
|
|
35 lbs
|
|
