Torque Converters for Gokarts and Minibikes

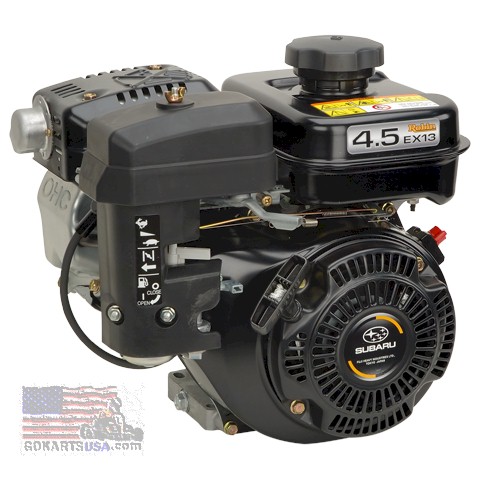

Robin 4.5hp OHV Powersport Engine

View Larger Image

Reg: $399.00

MEMORIAL DAY SALE: $349.00

SOLD OUT

MFG: Robin

Part No: EX13

please see the Titan engines

Quantity:

Add to a new shopping list

Quantity Discounts

Quantity	Amount
2 to 3	$339.00
4 to 6	$329.00
7 to 9	$324.00
10 to 9999	$319.00

ROBIN 4.5hp

FACTORY DESIGNED FOR GO KARTS & MINI BIKES

3-year warranty

OVERHEAD VALVES FOR EASIER STARTING & SMOOTHER RUNNING

FEATURES:

The engine fits in the minibike and gokarts we sell. Also, gas tank may be removed for installation in a custom minibike frame if you are using a separate gas tank.
This engine bolts right onto most go karts and mini bikes without any modifications.
*3/4" diameter, 2-1/4" long keyed crankshaft
Centrifugal Clutches and Torque Converters for 3/4" diameter crankshafts will fit this engine.
4 Tapped bolt holes around crankshaft. Our Torq-A-Verter kits will bolt up to this engine. Chain guards, etc...will also bolt to it.
Soft pull starter - less pulling effort required to start.
Set up with a spring-loaded throttle return. This is a factory designed throttle return system for a Go Kart or Minibike to allow the throttle cable to return properly

NOTE: This engine is the updated version and has a manual choke. The manual choke allows the engine to be started more easily under most conditions

NOTE: Not just any engine can be used on a Go Kart or Minibike. This engine is factory designed to be used on Go Karts or Minibikes. It has the Throttle Hookup and Spring Return mechanism to help prevent the throttle from sticking in the ON position, a common problem when using a Utility Engine.

Lawn Mower and Utility Engines from other suppliers may cause you to have unwanted problems such as these:

They may not have the proper spring-loaded throttle return for the throttle cable
The crankshaft may be the wrong length and a standard clutch will not fit
The side cover may not have a standard bolt pattern for adding chain guards, Torq-a-Verter kits, etc.
It may also be completely under-powered because of the RPM range of the engine

Class	Overhead Cam
Shaft	Horizontal
Cylinders	1
Displacement	126
Cycles	4
Fuel	Gasoline
Max HP/RPM (Gross HP)	4.3/4000
Max KW/RPM	3.2/4000
Continuous HP/RPM	3.0/3600
Max Torque ftlbs/RPM	6.01/2500
Max Nm/RPM	8.1/2500
Bore x Stroke mm	58 x 48
Compression Ratio	8.5:1
Starter	Recoil
Dry Weight lbs	31
Dry Weight kg	14
Length	11.6"
Width	13.4"
Height	12.5"
Fuel Capacity US Gallons (ltrs)	3/4 Gal
Fuel Capacity Fl oz (ltrs)	2.7
Lube Type	Engine Oil SAE 10W-30, 20W, 30W
Oil Capicity Fl oz (ltrs)	20.28
Muffler (type)	Low-Noise

Engine Family Overview:
With six models ranging from 4.5- to 14-horsepower, the Subaru overhead cam engines lead the industry in technology offering more power, less noise and easy, one pull starting every time. Introduced as the first air-cooled engine line to use advanced chain-driven overhead cam technology, the Subaru EX Series provides maximum efficiency, performance and power with minimal noise and emissions. The engine design is extremely compatible and easy to install, and simply exchanges with most existing slant cylinder engines.

Pent Roof Combustion Chamber
Low Operating Temperature
3-year Manufacturer’s Warranty
Aluminum alloy blocks with cast iron cylinder liner
Electronic ignition with automatic timing adjustment
Dual ball bearing supported crankshaft
Automatic decompression system
Splash type lubrication
Fewer moving valve train parts than OHV designs
Patent-pending 360-degree airflow cooling design
Heavy-duty piston rings
Case-hardened steel timing chain

Owners Manual

Warranty
