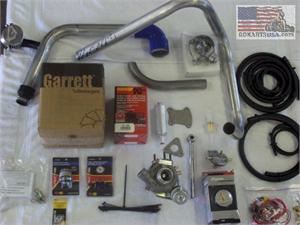

Dune Buggy Turbo Charger Kits

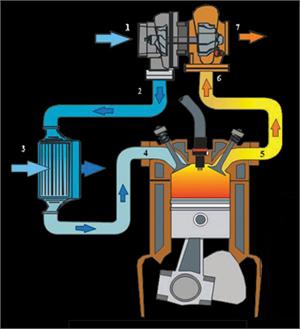

1 Compressor Inlet
2 Compressor Discharge
3 Charge air cooler (CAC)
4 Intake Valve
5 Exhaust Valve
6 Turbine Inlet
7 Turbine Discharge

The components that make up a typical turbocharger system are:

• The air filter (not shown) through which ambient air passes before entering the compressor (1)
• The air is then compressed which raises the air’s density (mass / unit volume) (2)
• Many turbocharged engines have a charge air cooler (aka intercooler) (3) that cools the compressed air to further increase its density and to increase resistance to detonation
• After passing through the intake manifold (4), the air enters the engine’s cylinders, which contain a fixed volume. Since the air is at elevated density, each cylinder can draw in an increased mass flow rate of air. Higher air mass flow rate allows a higher fuel flow rate (with similar air/fuel ratio). Combusting more fuel results in more power being produced for a given size or displacement
• After the fuel is burned in the cylinder it is exhausted during the cylinder’s exhaust stroke in to the exhaust manifold (5)
• The high temperature gas then continues on to the turbine (6). The turbine creates backpressure on the engine which means engine exhaust pressure is higher than atmospheric pressure
• A pressure and temperature drop occurs (expansion) across the turbine (7), which harnesses the exhaust gas’ energy to provide the power necessary to drive the compressor
