Easy Order Minibike
EASY ORDER MINIBIKE PARTS

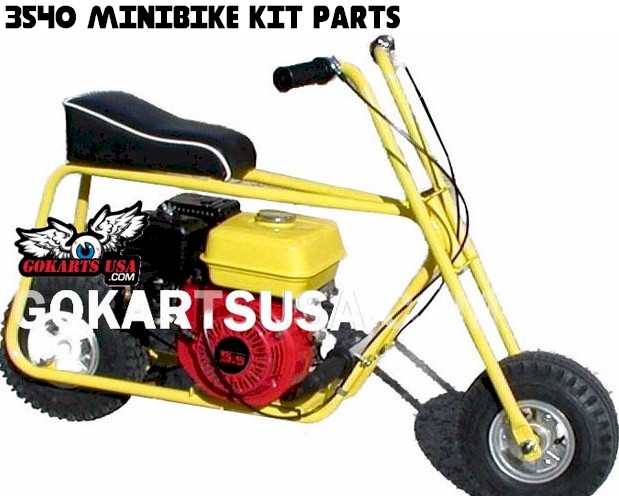

TAKE THE GUESSWORK OUT OF ORDERING MINIBIKE PARTS
These parts all fit together and can be used on just about Any Minibike
|
Azusa, Rupp, Baja, Manco, Yerfdog, TrailSport, Little BadAss, Taco, American Flyer, Bonanza and more
|
CLICK ON THE PART NUMBERS

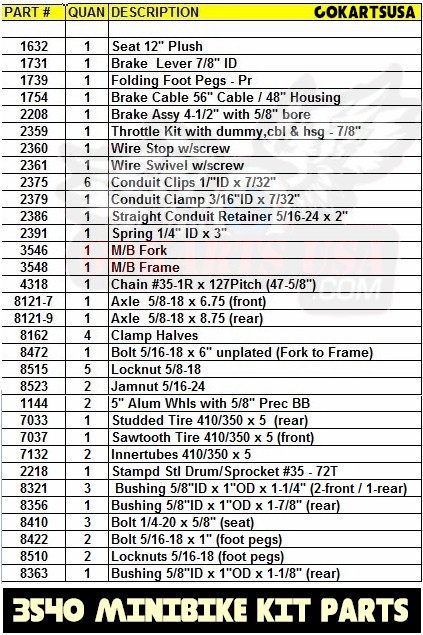

| PART#
|
QTY
|
DESCRIPTION
|
| 1632
|
1
|
Seat 12" Plush
|
| 1731
|
1
|
Brake Lever 7/8" ID
|
| 1739
|
1
|
Folding Foot Pegs -Pr
|
| 1754
|
1
|
Brake Cable 56" / 48" Housing
|
| 2208
|
1
|
Brake Assy 4-1/2" with 5/8" Bore
|
| 2359
|
1
|
Throttle Kit with Dummy Grip -7/8"
|
| 2360
|
1
|
Wire Stop w/Screw
|
| 2361
|
1
|
Wire Swivel w/Screw
|
| 2375
|
6
|
Conduit Clips 1" ID x 7/32"
|
| 2379
|
1
|
Conduit Clamp 3/16" ID
|
| 2386
|
1
|
Straight Conduit Retainer 5/16-24 x 2"
|
| 2391
|
1
|
Spring 1/4" ID x 3"
|
| 3546
|
1
|
M/B Fork
|
| 3548
|
1
|

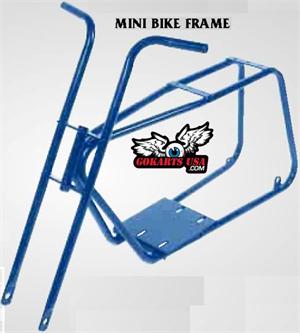

M/B Frame
|
| 4318
|
1
|
Chain #35-1R x 127Pitch (47-5/8")
|
| 8121-7
|
1
|
Axle 5/8-18 x 6.75 (front)
|
| 8121-9
|
1
|
Axle 5/8-18 x 8.75 (rear)
|
| 8162
|
4
|
Clamp Halves
|
| 8472
|
1
|
Bolt 5/16-18 x 6 (Fork to Frame)
|
| 8515
|
5
|
Locknut 5/8-18
|
| 8523
|
2
|
Jamnut 5/16-24
|
| 1144
|
2
|
5" Alum Whls with 5/8" Prec BB
|
| 7033
|
1
|
Studded Tire 410/350 x 5 (rear)
|
| 7037
|
1
|
Sawtooth Tire 410/350 x 5 (front)
|
| 7132
|
2
|
Innertubes 410/350 x 5
|
| 2218
|
1
|
Stampd Stl Drum/Sprocket #35 - 60T
|
| 8321
|
3
|
Bushing 5/8"ID x 1-1/4" (2-f, 1-r)
|
| 8356
|
1
|
Bushing 5/8"ID x 1"OD x 1-7/8" (rear)
|
| 8410
|
3
|
Bolt 1/4-20 x 5/8" (seat)
|
| 8422
|
2
|
Bolt 5/16-18 x 1" (foot pegs)
|
| 8510
|
2
|
Locknuts 5/16-18 (foot pegs)
|
| 8363
|
1
|
Bushing 5/8"ID x 1"OD x 1-1/8" (rear)
|
Item No:
Complete selection of Brake Cables, Clutch Cables, Throttle Cables for Dirt Bikes, Scooter, Motorcycle, Mini Bike, GoKart. Choose Cable Type and Cable Length in Product Options above
|
Item No: G1731
Rugged steel brake lever for 7/8 in. handle. Split mounting collar. Use with barrel end cable. Complete with adjusting hardware
|
Item No:
|
Item No: G-RLV4449
Throttle Cable .120 DIAMETER BALL END 76L. for all Briggs Animal engines
|
Item No:
2224 Centrifugal Clutch for Go Kart or Mini Bike, #35 chain, 3/4 in. bore, 12-tooth Clutch. Includes Key and Set Screw. High Quality, Heavy Duty, Long Lasting
|
Item No: G4318
Go Kart and Mini Bike Chain #35, Top Quality, Race Proven, ANSI & ISO Standards Roller Chain. 4 Foot Length with masterlink included
|
Item No: G4008-10
Drive Standard Chain #35, 10 foot length, Go Kart and Mini Bike, Space Chain is a Top Quality chain that resists stretching, Race Proven, ANSI & ISO Standards Roller Chain. with masterlink included
|
Item No: G4023-10
Drive Chain #40/41, 10 foot length, Go Kart and Mini Bike, Top Quality, Race Proven, ANSI & ISO Standards Roller Chain. with 1 masterlink included
|
Item No:
The most commonly used Mini Bike Brake. 2208 BRAKE ASSEMBLY, 4-1/2", STEEL ANCHOR BACKING PLATE, 5/8" BORE for Mini Bikes, Go Karts or any small vehicle. Mounts in the 2217 60T or 2218 72T Sprocket/Hub Combo. Installs on Tristar 5, 6 and 8" Wheels
|
Item No:
Mini Bike Rear Wheel Complete Assembly Includes: 5 in. Aluminum Wheel, Precision Bearings, 72T Sprocket #35, Drum Brake Assembly, Knobby Tire and Tube. Use as a complete rear wheel system on any Mini Bike. Fits 5/8 in. Axle
|
Item No:
Innertubes for all of our Tires
|
Item No: G2359
Mini Bike Throttle Kit. Complete Assembly. 7/8 in. Handlebars, Grip, 54 in. Cable, Un-Lined Conduit, Dummy Grip and Hardware included
|
Item No:
Choose your size, Mini-Bike Front Axle, fits most Mini Bikes. 5/8 in. Diameter, Premium Quality, Heavy Duty
|
Item No:
Mini-Bike Rear Axle, fits most Mini Bikes. 5/8 in. Diameter, 8 3/4 in. Length, 1 in. Thread Length. Premium Quality, Heavy Duty
|
Item No:
Mini-Bike Rear Axle, fits most Mini Bikes. 5/8 in. Diameter, 7 3/4 in. Length, 1 in. Thread Length. Premium Quality, Heavy Duty
|
Item No:
Axle Spacers, for Go Karts and Mini Bikes. Choose desired size, then select part number. Premium Quality, Heavy Duty
|
|
|
