8 in. Rear Wheel with Brake and 72 TOOTH SPROCKET

8 in. Rear Wheel with BRAKE and SPROCKET option
8 in. Rear Wheel with BRAKE and SPROCKET option
Item No: A-Tri-Star 8
Brand: Azusa
List Price: $72.00
MEGA SALE: $59.95 (+$63.95)
You Save: $12.05 (17 %)
In Stock
Product Options

* denotes required field

Bearings*
Tire*
Tube*
4-1/2" Drum Brake*
Brake Drum*
8" REAR WHEEL
WITH BRAKE AND 72 TOOTH SPROCKET

 Use as a REAR WHEEL with BRAKE and 72 tooth SPROCKET. Excellent Wheels for Mini Bikes, Mini Choppers and Go Karts.

Add a Tire in product options above. This wheel fits on a 5/8" or 3/4" Axle or Spindle

ALUMINUM SPLIT-RIM WHEELS

can be configured with Brake and Sprocket

Use on Go Karts or Minibikes as a rear Wheel. Rims are two-piece for easy tire removal. Wheels include the bearings and nuts and bolts. Choose the bearing size to fit your axle or spindle outside diameter, either 5/8" or 3/4".

Select the Bearings you want.

This 8" cast aluminum wheel has the classic lines and superior strength of the popular Azusa 5" and 6" Tri Star Aluminum Wheels. Although dimensionally close to the 8" Spinner Wheel that takes our 5" brake, the 8" Tri Star was made to fit all our 4-1/2" Brakes. The wheel has a 3.75" bolt circle for mounting brake drums and sprockets. Brakes and Sprockets for this wheel can be selected in Product Options above.

8" Aluminum Wheel - Features

Beautiful Cast-Aluminum Design Choice of Ball Bearing styles
Tire Bead Anchor "Pips" Ball-Burnished Finish
Split Rim For Easy Tire Mounting Grade 5 Hardware

Choose the Wheel Bearing Size to fit your axle or spindle outside diameter, either 5/8" or 3/4"

Bearing Options & Part Numbers (Inside Diameter)
BEARING PART#
5/8" Precision Bearing 1152
3/4" Standard Bearing 1153
5/8" Standard Bearing 1154
3/4" Sealed Bearing 1151
3/4" Tapered Roller Bearing 1115
5/8" Tapered Roller Bearing 1114
3/4" Sealed Tapered Roller Bearing 1113
5/8" Sealed Tapered Roller Bearing 1112

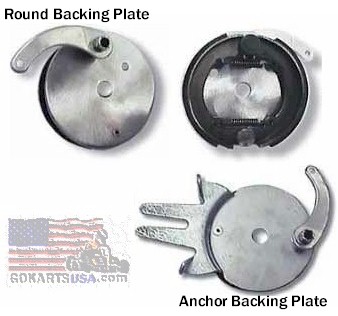

Configure your Brake

The 4-1/2" Drum Brake Assembly can be configured in Product Options above. It installs into the Brake Drum / Sprocket shown below. Select The Round or Anchor Backing Plate. Choose the Bore Size to match your Wheel Bearing (3/4" or 5/8")

  • 2270S Round 5/8" Bore, Steel
  • 2270A Round 5/8" Bore, Aluminum
  • 2272S Round 3/4" Bore, Steel
  • 2272A Round 3/4" Bore, Aluminum
  • 2208 Anchor 5/8" Bore, Steel

add a brake to your wheel

2208 Anchor Backing Plate Assembly
Has two mounting arms to attach to your vehicle to keep the backing plate from turning. It also has cable mounting bosses to attach your brake cable to the brake.




Choose a Sprocket
Select a Brake Drum with a 60 or 72 Tooth Sprocket in Product Options above. These Drums work with or without the Brake Assembly shown above.

  • 2217-ID Brake Drum with 60 Tooth Sprocket
  • 2218-ID Brake Drum with 72 Tooth Sprocket

sprocket




Add a Tire
PART# TREAD SIZE WIDTH OD*
7004-2 Slick 480/400 x 8 4.6" 16.3"
7010-2 Sawtooth 480/400 x 8 4.6" 16.0"
7012 Ribbed 480/400 x 8 4.6" 16.3"
7054 Knobby 480/400 x 8 4.6" 16.0"

slick

 Slick

knobby

 Knobby


ribbed

 Ribbed

sawtooth

 Sawtooth

*OD=Outside Diameter

Wheel Dimensions
TIRE SIZE WHEEL WIDTH DIAMETER HUB WIDTH WEIGHT LBS
8" 3.62" 9.00" 2.50" 3.7

Use as a REAR WHEEL with BRAKE and 72 tooth SPROCKET. Excellent Wheels for Mini Bikes, Mini Choppers and Go Karts. Add a Tire. Fits on a 5/8 in. or 3/4 in. Axle or Spindle
