8 in. Rear Wheel (with Brake and Sprocket Option)
shown for reference only: $79.14
*** THIS PAGE HAS BEEN UPDATED ***
click here to Shop Now
*oops! you have landed on an archived page, shown for reference only
Product Options
* denotes required field
Bearings*
Tire*
Tube*
4-1/2" Drum Brake*
Brake Drum*
8" REAR WHEEL
ADD BRAKE AND 60 or 72 TOOTH SPROCKET
Use as a REAR WHEEL with BRAKE and 60 OR 72 tooth SPROCKET. Excellent Wheels for Mini Bikes, Mini Choppers.
Add a Tire in product options above. This wheel fits on a 5/8" or 3/4" Axle or Spindle
ALUMINUM SPLIT-RIM WHEELS
can be configured with Brake and Sprocket
Use on Minibikes as a rear Wheel. Rims are two-piece for easy tire removal. Wheels include the bearings and nuts and bolts. Choose the bearing size to fit your axle or spindle outside diameter, either 5/8" or 3/4".
Select the Bearings you want.

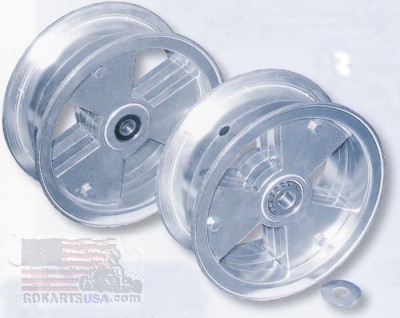

This 8" cast aluminum wheel has the classic lines and superior strength of the popular 5" and 6" Tri Star Aluminum Wheels. Although dimensionally close to the 8" Spinner Wheel that takes our 5" brake, the 8" Tri Star was made to fit all our 4-1/2" Brakes. The wheel has a 3.75" bolt circle for mounting brake drums and sprockets. Brakes and Sprockets for this wheel can be selected in Product Options above.
|
8" Aluminum Wheel - Features
|
Beautiful Cast-Aluminum Design
|
|
Choice of Ball Bearing styles
|
|
Tire Bead Anchor "Pips"
|
|
Ball-Burnished Finish
|
|
Split Rim For Easy Tire Mounting
|
|
Grade 5 Hardware
|
Choose the Wheel Bearing Size to fit your axle or spindle outside diameter, either 5/8" or 3/4"
Bearing Options & Part Numbers (Inside Diameter)
BEARING
|
PART#
|
5/8" Precision Bearing
|
1152
|
3/4" Standard Bearing
|
1153
|
5/8" Standard Bearing
|
1154
|
3/4" Sealed Bearing
|
1151
|
3/4" Tapered Roller Bearing
|
1115
|
5/8" Tapered Roller Bearing
|
1114
|
3/4" Sealed Tapered Roller Bearing
|
1113
|
5/8" Sealed Tapered Roller Bearing
|
1112
|
Configure your Brake
The 4-1/2" Drum Brake Assembly can be configured in Product Options above. It installs into the Brake Drum / Sprocket shown below. Select The Round or Anchor Backing Plate. Choose the Bore Size to match your Wheel Bearing (3/4" or 5/8")
- 2270S Round 5/8" Bore, Steel
- 2270A Round 5/8" Bore, Aluminum
- 2272S Round 3/4" Bore, Steel
- 2272A Round 3/4" Bore, Aluminum
- 2208 Anchor 5/8" Bore, Steel

2208 Anchor Backing Plate Assembly
Has two mounting arms to attach to your vehicle to keep the backing plate from turning. It also has cable mounting bosses to attach your brake cable to the brake.
|
Choose a Sprocket
Select a Brake Drum with a 60 or 72 Tooth Sprocket in Product Options above. These Drums work with or without the Brake Assembly shown above.

|
PART#
|
TREAD
|
SIZE
|
WIDTH
|
OD*
|
7004-2
|
Slick
|
480/400 x 8
|
4.6"
|
16.3"
|
7010-2
|
Sawtooth
|
480/400 x 8
|
4.6"
|
16.0"
|
7012
|
Ribbed
|
480/400 x 8
|
4.6"
|
16.3"
|
7054
|
Knobby
|
480/400 x 8
|
4.6"
|
16.0"
|

Slick
|
Knobby
|

Ribbed
|

Sawtooth
|
*OD=Outside Diameter
TIRE SIZE
|
WHEEL WIDTH
|
DIAMETER
|
HUB WIDTH
|
WEIGHT LBS
|
8"
|
3.62"
|
9.00"
|
2.50"
|
3.7
|
Use as a REAR WHEEL with BRAKE and SPROCKET. Excellent Wheels for Mini Bikes, Mini Choppers. Add a Tire. Fits on a 5/8 in. or 3/4 in. Axle or Spindle
