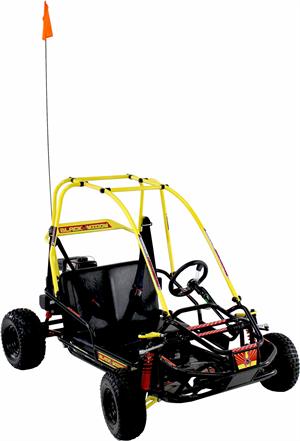

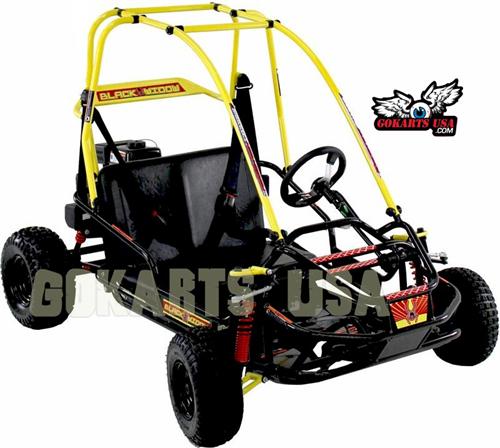

Black Widow Go Kart, by American Sportworks

Black Widow Go Kart, by American Sportworks
Black Widow Go Kart, by American Sportworks
Item No: 1793
Brand: American Sportworks
List Price: $1,895.00
SALE PRICE: $1,699.00
You Save: $196.00 (10 %)
ITEM DISCONTINUED
as low as $52/mo

Use Code MEGA

Product Options

* denotes required field

Color*



Get a Free Gift or Extra Discount

TOP QUALITY Black Widow is a great go kart for kids. It has a reliable 136cc engine that is capable of speeds up to 24 mph!

3-YEAR LCT ENGINE WARRANTY INCLUDED
See details below.

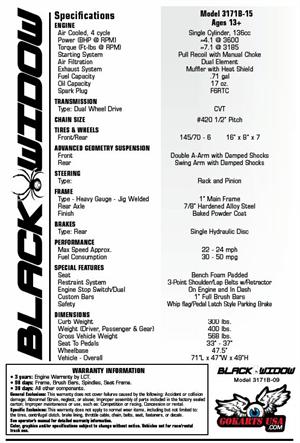

Specifications:
  • Engine Type: Single Cylinder,  136cc, air cooled, 4 cycle
  • Power (BHP @ RPM) ~ 4.1 @ 3500
  • Torque (Ft-lbs. @ RPM) ~ 7.1 @3150
  • Starting System: Pull recoil with manual choke
  • Air Filtration: Dual element
  • Exhaust System: Muffler with heat shield
  • Fuel Capacity: .67 Gallon
  • Oil Capacity: 16 oz.
  • Spark Plug: NGK
  • Drive: Dual Wheel Live Axle CVT
  • Chain Size: #420
  • Front Tires: 145/70-6
  • Rear Tires: 16 X 8 X 7
  • Front Suspension: Double A-arm with damped shocks
  • Rear Suspension: Swing arm with damped shocks
  • Steering: Rack and Pinion
  • Frame: Heavy guage jig welded 1" Main frame
  • Rear Axle: 7/8" Hardened Alloy Steel
  • Finish: Baked Powder Coat
  • Brakes: Rear Single Hydraulic Disc
  • Max Speed: 24 mph
  • Fuel Consumption: Up to 50 mpg
  • Curb Weight: 300 lbs.
  • Vehicle Capacity: 400 lbs. (Driver, Passenger & Gear)
  • Gross Weight: 568 lbs.
  • Seat to Pedals: 33" - 37" (Unbolt to move)
  • Wheel Base: 47.5"
  • Dimensions: 71" L x 47" W x 49" H
  • Parking Brake: Pedal Latch Style
  • Headrests: N/A
  • Seat: Bench Foam Padded

Safety Features:
  • 3-Point Shoulder / Lap Belts with Retractors
  • On Engine and in Dash Engine Stop Switches
  • 1" Full Brush Bars
  • Whip Flag
  • Pedal Latch Style Parking Brake


Warranty Information:
3-Year Engine Warranty by LCT
90 Days: Frame, Brush Bars, Spindles, Seat Frame.
30 Days: All other components
See Operator's manual for detailed warranty information.
4hp Engine, Torque Converter, 3 Year Motor Warranty, Black Widow is a great go kart for kids. It has a Torque Converter and a 136cc 4 HP engine that IS capable of speeds up to 24 MPH


VEHICLE ASSEMBLY
Since you are skipping the Dealer and saving over half the retail cost, you will have some assembly to do.

Vehicles are shipped warehouse direct, in a crate, 95% assembled.

Customer must:

  • un-crate
  • perform initial vehicle setup
  • perform engine oil service
  • check and adjust all systems, throttle, brakes
  • check and tighten all nuts and bolts
  • perform break-in service after 1 hour of operation
  • by customer's mechanic at customer's expense

EVEN ON ASSEMBLED UNITS: Initial Vehicle Setup and maintenance must be performed by a qualified mechanic.

Initial Setup can include installing: wheels, seats, roll cage, lights, battery. Break-in Service must be performed after 1 hour of operation and can include: engine oil service, check and tighten all nuts and bolts, check and adjust cables, throttle, brakes, chain and all other systems.

Who can work on my Vehicle?
There may not be many Go Kart or Scooter shops in your area.

  • Small Engine Repair Shops
  • Garden Equipment Shops

These shops can help with Assembly, Repair or Maintenance. Often times, they can come to your house.

All Parts are available for online ordering.

All Manuals can be downloaded.

WARRANTY

The Manufacturer Warranty DOES NOT COVER REPAIRS. The Manufacturer covers parts only and labor is not covered under any circumstances. Any damaged or missing delivery items will be replaced. The warranty covers defects in material and workmanship and DOES NOT COVER repairs or damage due to operation.

SUPPORT

To request support or initiate a Warranty Claim, please complete a Help Request . Parts can be purchased at any time on our website.



Resources
  EXTENDED WARRANTY   HELP REQUEST   DOCUMENTATION
  GOKART & MINIBIKE PARTS   ALL PARTS   TRAILMASTER PARTS
choose a Free Gift or get an Extra DiscountSELECT A FREE GIFT
  FREE HELMET   FREE GOGGLES   FREE GLOVES

Product Reviews

(10 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Good Luck with Warranty
Mark Ivy (Casa Grande, AZ) 10/20/2018 2:03 PM
Bought this at Sears with factory’s 3 year engine warranty. Well 2 days on the phone trying to get serviced...not so much. They say go here. Nope its closed. Then try here. Nope its closed. Then here. Nope, they say they’ll contact Sportworks. Two weeks later nothing. The warranty is shit don’t fall for it. They’re friendly but zero actual customer service.. So we have a $1300 kart that doesn’t work. *********************10/21/2018 STAFF RESPONSE: Hello Mark, We can help you, it does not matter if you purchased from Sears. We are an authorized dealer for your product. We can order parts or submit a warranty claim. Just complete a Help Request in the Customer Service section of our website.
