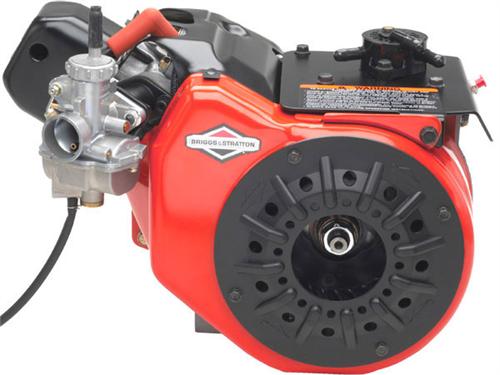

Briggs Animal Racing Engine
Briggs Animal Racing Engine  |
Item No: 1759
Brand: Briggs Racing
4th OF JULY SALE: $613.98
In Stock
ANIMAL
Racing Engine
Briggs Animal Racing Engine. The latest approach in engineering, manufacturing, and testing to design from the ground-up, a dedicated RACING engine. In addition, every engine is hand-built by master engine technicians. sealed at the factory, race ready
Features
* fuel pump pictured not included, add fuel pump, exhaust, air filter and clutch below
SPECS:
| Description | Wrench / socket size | Torque |
|---|
| Air Guard |
7mm |
40-50 lb-in. (4.5-5.6 Nm) |
| Blower Housing |
10mm & 3/8" |
60-110 lb-in. (7-12.5 Nm) |
| Carburetor (to manifold) |
10mm |
80-110 lb-in. (9-12.4 Nm) |
| Connecting Rod |
T27 |
115-120lb-in. (13 Nm) |
| Cylinder Head Bolts |
10mm |
200-220 lb-in. (20-27 Nm) |
| Exhaust Brace Screws |
10mm |
95-125 lb-in. (11-14 Nm) |
| Exhaust Stud |
10mm |
95-125 lb-in. (11-14 Nm) |
| Flywheel Nut |
15/16" |
55-75 ft-lbs. (74.5-101 Nm) |
| Flywheel Fan |
10mm |
180-240 lb-in. (20-27 Nm) |
| Intake (to cylinder) |
5mm Allen |
70-90 lb-in. (8-10.2 Nm) |
| Oil Drain Plug |
3/8" |
100-125 lb-in. (11-14 Nm) |
| PVL Module |
7mm |
20-35 lb-in. (2.3-4 Nm) |
| Rocker Arm Stud |
7/16" |
90-120 lb-in. (10-14 Nm) |
| Rocker Arm Plate |
10mm |
70-90 lb-in. (7.9-10.1 Nm) |
| Rocker Arm Set Screw |
1/8" Allen |
50-70 lb-in. (5.6-7.9 Nm) |
| Spark Plug |
5/8" Deep |
95-145 lb-in. (11-16.4 Nm) |
| SIde Cover |
10mm |
95-125 lb-in. (11-14 Nm) |
| Starter Gear |
#2 Phillips |
35-53 lb-in. (4-6 Nm) |
| Top Control Plate |
10mm |
70-90 lb-in. (8-10 Nm) |
| Valve Cover |
10mm Lower & 3/8" |
30-60 lb-in. (3.5-7 Nm) |
Briggs & Stratton does not approve or authorize the use of these engines on 3 wheel all-terrain vehicles (ATV s), motor bikes, fun/recreational go-karts, or aircraft products. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death. This engine requires special technical expertise and preparation before it can be used in competitive events.
Briggs Animal Racing Engine. The latest approach in. engineering, manufacturing, and testing to design from the ground-up, a dedicated RACING engine. in. addition, every engine is hand-built by master engine technicians. sealed at the factory, race ready
VEHICLE ASSEMBLY
Since you are skipping the Dealer and saving over half the retail
cost, you will have some assembly to do.
Vehicles are shipped warehouse direct, in a crate, 95% assembled.
Customer must:
- un-crate
- perform initial vehicle setup
- perform engine oil service
- check and adjust all systems, throttle, brakes
- check and tighten all nuts and bolts
- perform break-in service after 1 hour of operation
- by customer's mechanic at customer's expense
EVEN ON ASSEMBLED UNITS: Initial Vehicle Setup and maintenance must be performed by a qualified mechanic.
Initial Setup can include installing: wheels, seats, roll cage, lights, battery. Break-in Service must be performed after 1 hour of operation and can include: engine oil service, check and tighten all nuts and bolts, check and adjust cables, throttle, brakes, chain and all other systems.
Who can work on my Vehicle?
There
may not be many Go Kart or Scooter shops in your area.
- Small Engine Repair Shops
- Garden Equipment Shops
These shops can help with Assembly, Repair or Maintenance. Often times, they
can come to your house.
All Parts are available for online ordering.
All Manuals can be downloaded.
WARRANTY
The Manufacturer Warranty DOES NOT COVER REPAIRS. The
Manufacturer covers parts only and labor is not covered
under any circumstances. Any damaged or missing delivery items will be replaced. The
warranty covers defects in material and workmanship and DOES NOT COVER repairs
or damage
due to operation.
SUPPORTTo request support or initiate a Warranty Claim, please complete a
Help Request
. Parts can be purchased at any time on our website.
