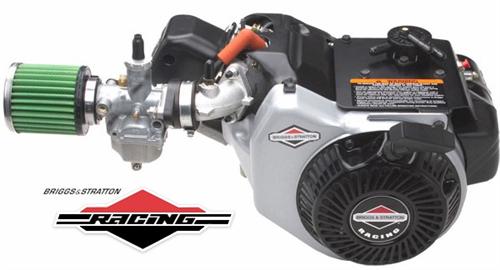

Briggs World Formula Racing Engine

Briggs World Formula Racing Engine
Briggs World Formula Racing Engine
Item No: 1761
Brand: Briggs Racing
MEGA SALE: $1,025.00
In Stock
Apply for Financing Text Now for Special Deal
WORLD FORMULA
   Racing Engine

Header and Premium Clutch included

Building off of the success of the Animal Racing engine, the World Formula was launched in 2003 in accordance with the CIK World Formula class rules. This complete engine package balances the latest in engine design and technology to provide racers with a consistent, low-maintenance and low-cost platform, in which to sharpen their driving skills and chassis setup. Hand-built and individually tested in our Milwaukee, Wisconsin skunk works

Estimated 15 HP.  Jr. World Formula class ages 12 - 15, Sr. World Formula class ages 15 & up
FEATURES
  • Dual Ball-Bearing, RACING Reinforced Cylinder
  • Billet Rod
  • Slotted, Stelite-Faced, Ground Cam w/ Compression Release
  • Dual, High-Silicon Valve Springs
  • PVL™ Digital Ignition System w/7,100 RPM Limiter
  • CNC D-Shape Intake Port
  • Walbro™ Round - Slide Carburetor
  • Dana™ Fire-Ring Head Gasket
  • Racing Crankshaft w/ Induction-Hardened Crankpin
  • Green™ Air Filter
  • Federal Mogul™ Moly-Coated Cam Ground, Barrel-Faced Piston
  • Chrome-Faced, Racing Only Ring Package
  • Port-Liner, Exhaust System
  • Mikuni™ Fuel Pump
  • Automotive 3-Piece Valve Retainer System
  • Beefy Rocker Arm Stud Nuts
 *THIS ENGINE NO LONGER HAS ELECTRIC START*

Technical / Torque Specifications

Description Wrench / socket size Torque
Air Guard 7mm 40-50 lb-in. (4.5-5.6 Nm)
Blower Housing 10mm & 3/8" 60-110 lb-in. (7-12.5 Nm)
Carburetor (to manifold) 10mm 80-110 lb-in. (9-12.4 Nm)
Connecting Rod T27 140-150 lb-in. (16-17 Nm)
Cylinder Head Bolts 10mm 200-220 lb-in. (20-27 Nm)
Exhaust Brace Screws 10mm 95-125 lb-in. (11-14 Nm)
Exhaust Stud 10mm 95-125 lb-in. (11-14 Nm)
Flywheel Nut 15/16" 55-75 ft-lbs. (74.5-101 Nm)
Flywheel Fan 10mm 180-240 lb-in. (20-27 Nm)
Intake (to cylinder) 5mm Allen 70-90 lb-in. (8-10.2 Nm)
Oil Drain Plug 3/8" 100-125 lb-in. (11-14 Nm)
PVL Module 7mm 20-35 lb-in. (2.3-4 Nm)
Rocker Arm Stud 7/16" 90-120 lb-in. (10-14 Nm)
Rocker Arm Plate 10mm 70-90 lb-in. (7.9-10.1 Nm)
Rocker Arm Set Screw 1/8" Allen 50-70 lb-in. (5.6-7.9 Nm)
Spark Plug 5/8" Deep 95-145 lb-in. (11-16.4 Nm)
SIde Cover 10mm 95-125 lb-in. (11-14 Nm)
Starter Gear #2 Phillips 35-53 lb-in. (4-6 Nm)
Top Control Plate 10mm 70-90 lb-in. (8-10 Nm)
Valve Cover 10mm Lower & 3/8" 30-60 lb-in. (3.5-7 Nm)
Briggs & Stratton does not approve or authorize the use of these engines on 3 wheel all-terrain vehicles (ATV s), motor bikes, fun/recreational go-karts, or aircraft products. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death. This engine requires special technical expertise and preparation before it can be used in competitive events.
Header and Premium Clutch included, World Formula is designed in. accordance with the CIK World Formula class rules. Estimated 15 HP, Jr. World Formula class ages 12 - 15, Sr. World Formula class ages 15 & up


VEHICLE ASSEMBLY
Since you are skipping the Dealer and saving over half the retail cost, you will have some assembly to do.

Vehicles are shipped warehouse direct, in a crate, 95% assembled.

Customer must:

  • un-crate
  • perform initial vehicle setup
  • perform engine oil service
  • check and adjust all systems, throttle, brakes
  • check and tighten all nuts and bolts
  • perform break-in service after 1 hour of operation
  • by customer's mechanic at customer's expense

EVEN ON ASSEMBLED UNITS: Initial Vehicle Setup and maintenance must be performed by a qualified mechanic.

Initial Setup can include installing: wheels, seats, roll cage, lights, battery. Break-in Service must be performed after 1 hour of operation and can include: engine oil service, check and tighten all nuts and bolts, check and adjust cables, throttle, brakes, chain and all other systems.

Who can work on my Vehicle?
There may not be many Go Kart or Scooter shops in your area.

  • Small Engine Repair Shops
  • Garden Equipment Shops

These shops can help with Assembly, Repair or Maintenance. Often times, they can come to your house.

All Parts are available for online ordering.

All Manuals can be downloaded.

WARRANTY

The Manufacturer Warranty DOES NOT COVER REPAIRS. The Manufacturer covers parts only and labor is not covered under any circumstances. Any damaged or missing delivery items will be replaced. The warranty covers defects in material and workmanship and DOES NOT COVER repairs or damage due to operation.

SUPPORT

To request support or initiate a Warranty Claim, please complete a Help Request . Parts can be purchased at any time on our website.
