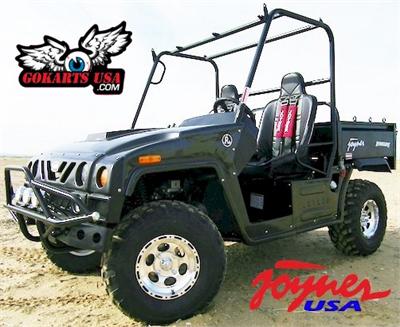

Joyner 800 Renegade R2 UTV 2WD/4WD
 Joyner 800 Renegade R2 UTV  Joyner 800 Renegade R2 UTV Joyner 800 Renegade R2 UTV           |
Item No: 2135
Brand: Joyner
List Price: $9,999.00
HALLOWEEN SALE: $9,899.00
You Save: $100.00 (1 %)
In Stock
as low as $330/mo
Product Options
* denotes required field
Color*
3500lb Winch*
Assembly Options*
800 RENEGADE R2
CARB APPROVED FOR CALIFORNIA 2WD/4WD
Standard Features:
- 12″ Aluminum Wheels on Joyner Dirt Pro Tires
- Front and Rear Receiving Hitch
- Utility Dump Bed
- Sport Dash with Full Gauges
- On Command 2WD and 4WD with Locking Differentials
- Front and Rear A-Arm Suspension
- 750lb Payload and 1500lb Towing Capacity
- 4 Wheel Hydraulic Disc Brakes and Hydraulic Clutch
- 3-Point Racing Harness Seat Belts and Racing Seats
- OPS (Occupant Protection System)
We can ship it to you in a crate,
ship it to you Fully Assembled,
or you can Pickup Fully Assembled in Pleasant Hill, CA
HOW TO ORDER: Joyner UTVs have become so popular that they are effectively a Special Order item. 8 Joyner vehicles fit in a shipping Container. As each shipment arrives, most of the units are usually pre-sold and get shipped out right way. They almost never stay in stock or sit on our showroom floor. The wait can be anywhere from 1 to 8 weeks or more. Just place your order online, use GokartsUSA Checkout and select the Pay-by-Check payment method. A Sales Representative will call you to finalize your order
Optional Equipment:
- 3500lb Winch
- Sport Light Bar
- Front Brushguard/Bumper
- Roof Rack
- Hard Shell Enclosure
- Power Steering
- Spare Tire/Wheel
- Upgraded Tire/Wheel Packages
SPECIFICATIONS:
|
Engine Type
|
Chery Three Cylinder, 12-Valve DOHC, Water-Cooled |
| Displacement |
812cc |
| Bore x Stroke |
72 x 66.5 |
| Compressure Ratio |
9.5:1 |
| Rated Power |
38 KW/6000rpm (52HP) |
| Max Torque |
70 N.m/4000rpm |
| Carburetor |
Electronic Fuel Injection (EFI) |
| Ignition |
ECU |
| Transmission |
Manual 5-Speed – Hydraulic Clutch |
| Drive System |
2WD / 4WD Front and Rear Locking Differential |
| Top Speed |
88km/h |
| Front, Rear Brake |
Hydraulic Four Wheel Disc |
| Front Suspension |
Independent, Double A Swing Arm |
| Rear Suspension |
Independent, Double A Swing Arm |
| Front/Rear Tires |
27*8-14 / 27*11-14 |
| Fuel Tank |
31L (7Gal) |
| Dry Weight |
760kg |
| GVWR |
1260 kg |
| Payload Capacity |
500kg |
| Length*Width*Height |
3230*1550*1900mm |
| Wheelbase |
2050mm |
| Ground Clearance |
290 mm |
| Qty/Container |
1 Units/20GP; 3 Units/40GP; 6 Units/40HQ |
| Carton Size |
3320mm*1660mm*1220mm |
Joyner 800 Renegade R2 UTV Chery EFI, Liquid Cooled, 2WD / 4WD Switchable, with locking Diffs. Manual 5-Speed, 4-Wheel Disc Brakes, Aluminum Alloy Wheels. CARB APPROVED FOR CALIFORNIA
VEHICLE ASSEMBLY
Since you are skipping the Dealer and saving over half the retail
cost, you will have some assembly to do.
Vehicles are shipped warehouse direct, in a crate, 95% assembled.
Customer must:
- un-crate
- perform initial vehicle setup
- perform engine oil service
- check and adjust all systems, throttle, brakes
- check and tighten all nuts and bolts
- perform break-in service after 1 hour of operation
- by customer's mechanic at customer's expense
EVEN ON ASSEMBLED UNITS: Initial Vehicle Setup and maintenance must be performed by a qualified mechanic.
Initial Setup can include installing: wheels, seats, roll cage, lights, battery. Break-in Service must be performed after 1 hour of operation and can include: engine oil service, check and tighten all nuts and bolts, check and adjust cables, throttle, brakes, chain and all other systems.
Who can work on my Vehicle?
There
may not be many Go Kart or Scooter shops in your area.
- Small Engine Repair Shops
- Garden Equipment Shops
These shops can help with Assembly, Repair or Maintenance. Often times, they
can come to your house.
All Parts are available for online ordering.
All Manuals can be downloaded.
WARRANTY
The Manufacturer Warranty DOES NOT COVER REPAIRS. The
Manufacturer covers parts only and labor is not covered
under any circumstances. Any damaged or missing delivery items will be replaced. The
warranty covers defects in material and workmanship and DOES NOT COVER repairs
or damage
due to operation.
SUPPORTTo request support or initiate a Warranty Claim, please complete a
Help Request
. Parts can be purchased at any time on our website.
