Rokon Scout 2x2 Mini Bike

Rokon Scout 2x2 Mini Bike
Rokon Scout 2x2 Mini Bike
shown for reference only: $7,275.00
*** THIS PAGE HAS BEEN UPDATED ***

click here to Shop Now

*oops! you have landed on an archived page, shown for reference only
Product Options

* denotes required field

Color*
SCOUT
   2 Wheel Drive Minibike

click images for larger view
Products : Ranger

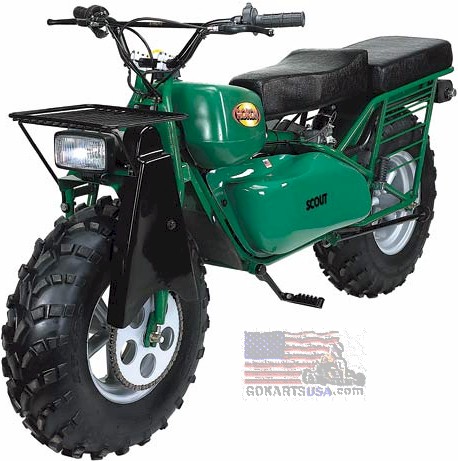

Scout. The ROKON Scout is a durable dual wheel drive workhorse. Easy to ride as it is to maintain, Scout features rugged steel spoke wheels and the ROKON 3 speed transmission. First introduced in the early 1980s Scout has been updated with improve frame strength, powdercoat painting for a long lasting durable finish and solid state ignition. Scouts appeal to riders who are looking for a mototractor that costs less and sits closer to the ground. They have 14" of ground clearance with a seat height of 29 inches. Tires are wide (8X12), the widest of any ROKON, and make riding a sure-footed experience. Dual disc brakes, front cargo rack and rear passenger seat are all standard options on Scout as they are on every ROKON.

Standard color is forest green. Scout has a Kohler 4 stroke power plant with 174 cc and 6.6hp. This is the same engine on the Trail-Breaker. In fact the Scout is the same as Trail-Breaker except for the steel spoke wheels.  Lights are run off an engine magneto and the starting mechanism is a recoil system. There are many accessories that can be ordered with Scout including gun boot, sidecar, trail maintenance kit, brush busters, wheel chains for snow among others. Each Scout comes with complete illustrated manuals to make parts identification a cinch. However, don't expect much maintenance here. After checking drive chains for lubrication, air filter and changing a spark plug from time to time, there is just not much to worry about.

Basic and rugged Scout embodies the essential ROKON qualities - go anywhere, easy to ride, versatile and simple to maintain.

Scout Specifications

Drive System Full time, front and rear wheel drive
Engine Kohler, single cylinder, four stroke, fan cooled
Piston Displacement 172cc
Power Output 6 HP at 4,000 RPM
Power Transmission Automatic torque converter into a three gear range selector
Speed Range 1st gear 0-10 MPH (16 kph)
2nd gear 0-22 MPH (35 kph)
3rd gear 0-35 MPH (56 kph)
Power Take Off 6.0 HP (est.), speed proportional to throttle setting
Fuel Tank Capacity 2.69 US (10.0 L)
Fuel Regular unleaded gas
Fuel Consumption 0.45 gal/hr (1.7L per hour)
Brakes Disc type, front and rear, dual handlebar hydraulic mounted controls
Starter Automatic recoil
Ignition Electronic Magneto
Electrical 12 volt with 90 watt alternator
Exhaust Muffler and US Forestry approved spark arrestor
Carburetor Fixed Main Jet Carburetor
Air Filter Dry type
Grade Capability 60 percent
Weight 208 lbs. (94 kg) dry weight
Warranty 12 month Limited Warranty

Scout Dimensions

Wheels 12 inch Steel Spoke (optional 15" spoke wheel)
Tires 8.0X12 tubeless
Wheel Base 51 inches (124 cm)
Ground Clearance 14 inches (36 cm), 15" with 15" spoke wheel
Height Over Seat 29 inches (74 cm) 30" with 15" spoke wheel
Height Over Handlebar 41 inches (104 cm) 42" with 15" spoke wheel
Width 31 inches (79 cm)
Length 79 inches (196 cm)
FordableWater Depth 23 inches (58 cm) or 24" with 15" spoke wheel





Scout has the Wide Tires. For those of you who may not know quite what this is, ROKON is an amazing iconic Mini Bike, manufactured for over 50 years. Some of you may remember this Dual Wheel Drive, 3-Speed, Floating All Terrain Mini Bike


PARTS INFORMATION
over 21,000 parts
  • IDENTIFY YOUR MODEL
    This can be one of the biggest challenges in ordering correct parts. If you ordered your Vehicle from us, we can look-up your records.
  • FACTORY PARTS
    150/300 TrailMaster, Kandi, IceBear, Kinroad, Hammerhead, Roketa
  • MINIBIKE PARTS
    Manco, Kenbar, Yerf-Dog, Kartco, Carter, Azusa, Taco, Bonanza, Little BadAss, American Racer
  • DIRT BIKE PARTS
    70, 110, 125, 150, 250cc SSR, Apollo, PitsterPro, Thumpstar, Roketa
  • GOKART PARTS
    Manco, Kenbar, Kartco, Yerf-Dog, Carter, Azusa, TopKart
  • ATV PARTS
    110, 125, 150cc, Coolster, Icebear, Trailmaster, Kandi, Kayo
  • SCOOTER PARTS
    50, 150cc Icebear, BMS, SSR, Znen, Trailmaster
  • PERFORMANCE PARTS
    150/250/300cc TrailMaster, Kandi, Icebear, Kinroad, BMS, Roketa, SunL, American Sportworks, Carter, Dazon


ALL PARTS   see all categories
  GOKART/MINIBIKE PARTS   FACTORY PARTS   PERFORMANCE
  PARTS   TRAILMASTER   BUGGY PARTS
  ENGINES   TRAILMASTER 150/200 ENGINE   150 BUGGY
  TORQUE CONVERTER   KINROAD   150 ENGINE
  GOKART SPEED   TRAILMASTER 300   150 TRANSMISSION
  MINIBIKE SPEED   HAMMERHEAD   250 BUGGY
  TIRES   BUGGY TIRES   ALL TIRES
  WHEELS   BUGGY WHEELS   ALL WHEELS
  ATV PARTS   DIRT BIKE PARTS   SCOOTER PARTS
  ATV PARTS   PIT BIKE 70/110/125/250   SCOOTER PARTS
  ATV TIRES   HONDA CRF50/70   50 SCOOTER
  ATV WHEELS   PIT BIKE ENGINES   150 SCOOTER
  CHINESE BIKE PARTS   HONDA CLONE PARTS   MINI CHOPPER PARTS
  POCKET BIKE -33,36,49cc   TITAN TX200   LITTLE BADASS
  GY6 50/125/150   PREDATOR 212   150 SCOOTER
  DIRT BIKE 50/70/110/125   HONDA GX200   150 SCOOTER
choose Free HelmetSELECT A FREE HELMET
  FREE HELMET   FREE GOGGLES   FREE GLOVES

Product Reviews

(0 Ratings, 0 Reviews)


Closeout Scout has the Wide Tires. For those of you who may not know quite what this is, ROKON is an amazing iconic Mini Bike, manufactured for over 50 years. Some of you may remember this Dual Wheel Drive, 3-Speed, Floating All Terrain Mini Bike new 100-lbs //gokartsusa.com/images/products/detail/scout2.1.jpg Red/Black/Blue Scout Rokon

PRODUCT SCROLLER >>

  • Rokon Autograb and Accessories
    Item No: 108299
    Archived Listing: $495.00
    shown for reference only: $449.00
    Add the Autograb Front Suspension to your Rokon Bike. Also, choose from 44 available Accessories for your Rokon Bike. FREE SHIPPING when ordered with a bike
    View Rokon Autograb and Accessories

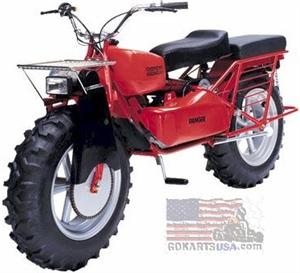

  • Rokon Ranger 2x2 Mini Bike
