American Sportworks Silver Streak Engine Replacement Kit

American Sportworks Silver Streak Engine Replacement Kit
American Sportworks Silver Streak Engine Replacement Kit
Item No: 2005
Brand: Titan
List Price: $389.00
CLEARANCE SALE: $319.00
You Save: $70.00 (18 %)
In Stock
Product Options

* denotes required field

Engine*
Clutch*
Plate*
Get a Free Gift or Extra Discount
SILVER STREAK
   ENGINE REPLACEMENT KIT

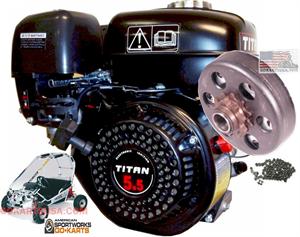

The Silver Streak Gokart has been discontinued. This kit will provide you with a 6.5hp Titan TX200 Powersport Engine, Engine mounting plate and Centrifugal Clutch. Use your existing chain.

NOTE: This engine is a little larger than the stock engine. Some components will need to be relocated and/or modified in order to install this engine. You will need to install the supplied engine mounting plate and move the axle sprocket.

KIT INCLUDES:
  • Titan 6.5hp Powersport Engine
  • Engine Mounting Plate
  • Centrifugal Clutch
INSTALL NOTES:
Engine Mounting Plate (included). The engine mount must be moved to the right side of the kart. The new plate must be welded. The crankshaft of the new engine will now be on the left side of the engine. The axle sprocket must be moved to the left and aligned with the clutch sprocket. Some older models may not use #35 chain. If this is the case, you can order the 2555 Hub and the 2653 53 tooth #35 sprocket shown below
photo and video shows the 5.5hp engine however, this kit comes with the 6.5hp engine
VIDEO
Lawn Mower and Utility Engines from other suppliers may cause you to have unwanted problems such as these:
  • They may not have the proper throttle hookup for the throttle cable
  • The crankshaft may be the wrong length and a standard clutch will not fit
  • The side cover may not have a standard bolt pattern for adding chain guards, Torq-a-Verter kits, etc.
  • It may also be completely under-powered because of the RPM range of the engine





Model TX200
Engine type  4-stroke 25° inclined single cylinder
Bore×Stroke 66mm × 45mm
Displacement 163cc
Compression ratio 8.5/1
Horsepower 6.5HP/3600rpm
Max. Torque 10.8Nm/2500rpm
lgnition Non-contact transistorized ignition(TCI)
Starter Recoil hand-operated
Air cleaner Semi-dry, oil bath, dual, double silent cyclone
Fuel tank capacity 3.6 L
Fuel consumption 290g/HP-hour
Engine oil capacity 0.6 L
Dimensions
L:12-3/4", W:11.0", H:14-3/4"
Crankshaft: 3/4" x 2-7/16"
Dry weight 32 lbs
The Silver Streak Go Kart has been discontinued. This kit will provide you with a 6.5hp Titan TX200 Replacement Engine, Mounting Plate and Centrifugal Clutch


VEHICLE ASSEMBLY
Since you are skipping the Dealer and saving over half the retail cost, you will have some assembly to do.

Vehicles are shipped warehouse direct, in a crate, 95% assembled.

Customer must:

  • un-crate
  • perform initial vehicle setup
  • perform engine oil service
  • check and adjust all systems, throttle, brakes
  • check and tighten all nuts and bolts
  • perform break-in service after 1 hour of operation
  • by customer's mechanic at customer's expense

EVEN ON ASSEMBLED UNITS: Initial Vehicle Setup and maintenance must be performed by a qualified mechanic.

Initial Setup can include installing: wheels, seats, roll cage, lights, battery. Break-in Service must be performed after 1 hour of operation and can include: engine oil service, check and tighten all nuts and bolts, check and adjust cables, throttle, brakes, chain and all other systems.

Who can work on my Vehicle?
There may not be many Go Kart or Scooter shops in your area.

  • Small Engine Repair Shops
  • Garden Equipment Shops

These shops can help with Assembly, Repair or Maintenance. Often times, they can come to your house.

All Parts are available for online ordering.

All Manuals can be downloaded.

WARRANTY

The Manufacturer Warranty DOES NOT COVER REPAIRS. The Manufacturer covers parts only and labor is not covered under any circumstances. Any damaged or missing delivery items will be replaced. The warranty covers defects in material and workmanship and DOES NOT COVER repairs or damage due to operation.

SUPPORT

To request support or initiate a Warranty Claim, please complete a Help Request . Parts can be purchased at any time on our website.
