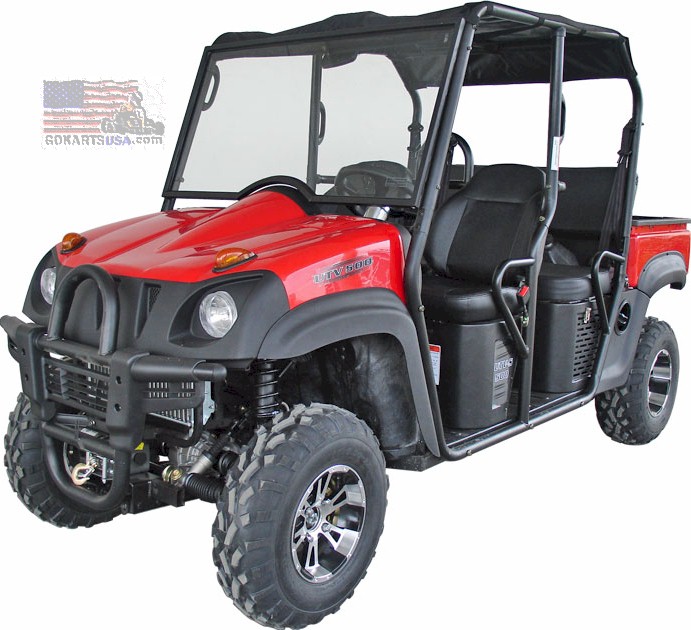

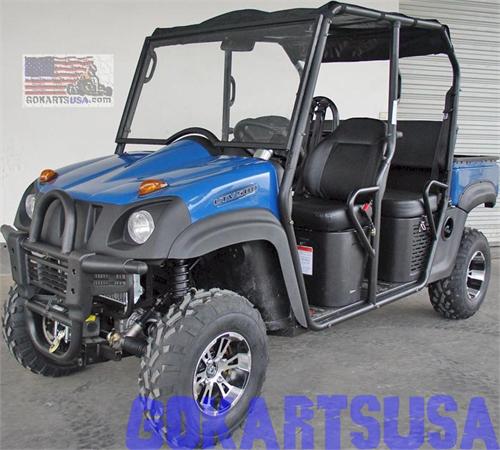

Roketa UV-03E 4-Seat 4x4 Utility Vehicle
|
UV-03E 500 4-Seat 4x4 500cc CFMOTO, Shaft Drive
UV-03E 500 packs a dependable CFMOTO 500cc engine coupled with a Heavy Duty Shaft Drive locking Rear Differential to get the job done. UV-03E 500 is a tough machine that's equally ready for work or play. Deluxe seating for four, a Hydraulic Dump Bed, and a towing capacity that adds incredible versatility. Transport equipment to sites unreachable by pickups. Move and dump building or landscaping materials where others can't. Compare features and we think you will agree, UV-03E 500 stands up to other models costing thousands more. Quality, Performance and Price, this one's got them beat!</>
Specs: |
-
500cc CFMOTO Engine, Liquid-Cooled, 4-stroke
-
4x4 and 4x2 Switchable
-
CVT Automatic Transmission with Hi/Lo/Reverse
-
Rear Differential Shaft Drive
-
Speedometer
-
FM Stereo with IPOD MP3 hookup
-
12v Outlet with Cigarette Lighter
-
12v CDI with Electric Start
- 70+ mph
- Front Suspension: Independent A-arms with adjustable-preload, remote resevoir coil-over-shocks
- Rear Suspension: Subframe pivot with adjustable-preload dual coil-over-shocks
- Brakes: Front Hydraulic Drum, Rear Hydraulic Drum
- Lighting: Hi/Lo Headlights, Night Lights, Tail / Brake Lights, Turn Signals
-
Aluminum Alloy Wheels
-
Electric Winch
-
Hydraulic Dump Bed
-
Adjustable Deluxe Seats
- 4-way Seatbelts
- Payload: 865 lbs
- Fuel Capacity: 5.2 gallons
- Tires: Front: 25 x 8-12, Rear: 25 x 10-12
- Ground Clearance: 7.2"
- Dimensions: 102" length x 50" width x 47" height
- Wheelbase: 83"
- Vehicle Weight: 684lbs
- Tool kit
|
|
PRODUCT ASSEMBLY
Setup of this product requires uncrating and installing/checking the wheels, seats, roll bars, hooking up the fuel line, battery and lights, checking tightness of all nuts and bolts, changing oil, etc. Although we do provide some very good information on our website, occasionally some units may need other routine items checked/adjusted such as cleaning and adjusting the carburetor and fuel tank, checking to ensure wires are well connected, adjusting chain slack and alignment, if needed. Since you are skipping a dealer and saving over half the price of a usual retail customer, your mechanic will need to perform the final assembly (as stated above). This will take generally 2-6 hours or more to perform depending on the product and skill level. While we will gladly assist you with any technical questions, support we can give over the telephone is limited. In addition to information which may be supplied by the manufacturer and delivered with the product, click here to see our suplemental Product Assembly Information
WARRANTY INFO
This product comes with a 3 month parts only warranty from the manufacturer. There are no returns or exchanges for any reason. The warranty does not include parts worn by standard use (such as tires, belts, clutches, chains, etc.) or parts damaged from use, accidents, abuse, or misuse of the product. Labor is not covered for any reason. Gokarts USA will assist the customer in obtaining warranty coverage from the manufacturer. Customer may be required to ship the defective or damaged part to manufacturer first before a replacement will be sent. Buggies are sold warehouse direct in a crate and are not delivered ready to ride. Customer is responsible for product setup and final assembly, which must be performed by qualified mechanic. We cannot refund or exchange your product if you cannot perform these functions or refuse to let a shop do it for you. See the order terms posted on our website and printed on your invoice for full information. click here to see the Order Terms before placing an order
WARRANTY CLAIMS
It is the customer’s responsibility to register products for warranty within 5 days of delivery. The Pre-Delivery Inspection form (PDI) must also be completed as required by all dealerships in the USA. This is a REQUIRED step in the Assembly Process. By not doing this step you will be VOIDING your warranty. Please click here for full warranty information Warranty Registration, PDI and Claim Form
|
Discontinued. 4-Seat 4x4 500cc CFMOTO Engine, CVT Automatic Transmission with HI/LO/Reverse, Shaft Drive, Disc Brakes, 4-Wheel Independent Suspension
