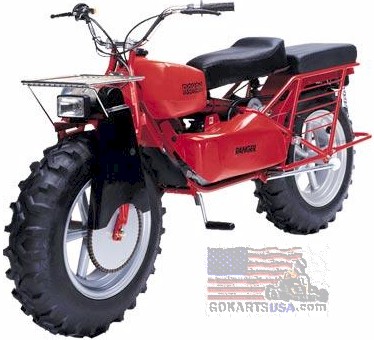

Rokon Ranger 2x2 Mini Bike

Born out of a long tradition of go anywhere dual wheel drive vehicles, the ranger is our first 4 stroke model. Like its predecessors, Ranger is light-weight (205 lbs), automatic and comes with dual disc brakes and the reliable ROKON 3 speed transmission. Ranger breaks new ground with a quiet and easy starting four-stroke Honda engine. Smooth and reliable power delivery means years of trouble-free use to tackle nasty off-road and work situations.

Ranger leaves a track lighter than a man's footprint and  uses a quiet Honda  powered engine. While it may be kind to the environment, Ranger still has all the ROKON go anywhere character and reliability. There are many options to consider like 4 different color options including red, forest green, black and olive drab with Realtree Camouflage seats. There are 4 different wheel choices including 12 and 15 inch steel spoke and 12 and 15 inch aluminum drum. All ROKON accessories fit a Ranger, too. When you get right down to it, riding a ROKON Ranger is truly the best there is in off road riding.

Ranger Specifications

Drive System		Full time, front and rear wheel drive
Engine		Honda, single cylinder, 4 stroke, fan cooled
Piston Displacement		160cc
Power Output		5.5 HP at 3,900 RPM
Power Transmission		Automatic torque converter into a three-gear range selector
Speed Range		1st gear 0-10 MPH (16 kph) 2nd gear 0-22 MPH (35 kph) 3rd gear 0-30 MPH (48 kph)
Power Take Off		5.5 HP (est.), speed proportional to throttle setting
Fuel Tank Capacity		2.69 US (10.0 L)
Fuel		Regular unleaded gas
Fuel Consumption		0.36 gal/hr (310 g/Kwh, 230 g/Hh)
Brakes		Disc type, front and rear, dual handlebar hydraulic mounted controls
Starter		Automatic recoil, optional electric start
Ignition		Transistorized magneto
Electrical		88 watt charging system
Exhaust		Muffler and US Forestry approved spark arrestor
Carburetor		Horizontal type, butterfly valve
Air Filter		Dry type
Grade Capability		60 percent
Weight		205 lbs. (93 kg) dry weight
Warranty		12 month Limited Warranty

Ranger Dimensions

Wheels		12 or 15 inch steel spoke*
Tires		5.9X15 Tubeless
Wheel Base		51 inches (129 cm)
Ground Clearance		15 inches (38 cm)
Height Over Seat		30 inches (76 cm)
Height Over Handlebar		42 inches (107 cm)
Width		31 inches (79 cm)
Length		79 inches (201 cm)
FordableWater Depth		24 inches (61 cm)
*Optional 12 and 15 inch drum is available
